1. Introduction

---

Renal artery aneurisms are rarely seen. Their incidence is between %0,1-1 and %80 of them is in saccular form[1]. In transplantation practice, about this situation there are limited numbers of reports and they are about donor renal artery aneurism, mycotic aneurisms at vascular anastomosis line, that occur after transplantation or repairment of nonrenal vascular aneurisms[2-5].

Both in native or transplantated kidneys, vascular complication rate that occur after percutaneous core biopsy is between %0,9 - %15[6,7]. This wide difference is attributed to lesions are benign and asymptomatic[6]. There are not enough information about treatment indications and repairment technics of intraparenchymal aneurisms in renal allogrefts.

2. Case Description

---

A 27-year-old female patient was diagnosed with crescentic glomerulonephritis secondary end-stage renal disease and renal transplantation was performed 9 years ago from a live donor (mother).2 years after transplantation, renal biopsy was planned due to progression of 1.8 g/day proteinuria in patient who was treated with tacrolimus, mycofenolat mofetil and steroid based immunsupressive therapy and had totally normal renal functions for 2 years after transplantation. Despite of 5 attempts, no enough material was obtained and proteinuria regressed with irbesartan treatment (150 mg), renal functions were normal. At that time, serological examinations including BK virus were done to explain proteinuria, but no pathological finding was found.

At last 2 months, serum creatinin (SCr) levels were slightly increased (23.05.2018 SCr: 0.97 mg/dl, 20.07.2018 SCr: 1.28mg/dl) and the patient was hypertensive. At July 2018, in graft Color Duplex Doppler ultrasonography, 2.5 cm cyctic formation was detected at upper pole of transplantated kidney and there was ying- yang flow pattern in this formation. Next to it, arterialized flow patterned intrarenal vein and normal flow patterned intrarenal segmentary renal artery, whose flow speed was increased (peak systolic speed approximately 200 cm/sc) and resistance was decreased (RI:0.35), was detected.

This findings were accepted significant for arterio venous fistula (AVF) with pseudoaneurism in the patient who had allograft biopsy before. The patient was hospitalized to confirm the diagnosis and for treatment. In her physical examination, blood pressure was 160/100 mm/Hg, SCr: 1.12 mg/dl, BKV DNA (urine) negative, takrolimus level: 5.4 ng/ml, in urine examination protein (+1), eryhtrocyte 1/HPF, leukocyte 1/HPF, spot urine protein/Cr ratio was 860 mg/day. She had taken tacrolimus (4 mg/day), mycofenolat (2gr/day), low dose prednisolone (5mg/day) and 10 mg amlodipin (irbesartan was changed into amlodipin for her pregnancy plans 2 years ago.) After giving fluids with N acetyl cystein to protect the kidney, selective renal angiography was done at 25.07.2018. A diagnostic angiography, followed by endovascular embolization of the fistula was planned. The procedure was carried out in the angiography suite of the interventional radiology unit. Following preparation of the left inguinal area under sterile conditions, a 6 French introducer sheat was placed into the left common femoral artery. A 5 French Cobra II catheter and a 0.035 inch hydrophilic guidewire were then inserted through the introducer sheath and the right iliac artery was catheterized using a contralateral approach. Angiographic images demonstrated the transplant kidney in the right iliac fossa, with its arterial and venous anastomoses to the right internal iliac artery and vein, respectively. The segmental branch of the renal artery supplying the middle part of the transplant kidney was increased in diameter. A high- flow AV fistula, with a giant aneurysmatic dilatation on its venous side, was visualized (figure 1). To reach the fistula site, the renal artery of the transplant kidney was then catheterized with a 5 French Cobra II catheter, and a 2.7 French co-axial microcatheter (Progreat Terumo) was selectively introduced through this catheter. Multiple pushable hydrocoils were delivered through the microcatheter, and the fistula site along with its arterial side, was embolized. Final angiographic images showed the complete occlusion of the fistula, without any aneurysmatic contrast filling (figure 2). No complications were observed during or after the procedure. The patient was discharged after 3 days of observation. At 03.08.2018 dated policlinic visit, we detected that blood pressure 110/70 mm/Hg without any antihypertensive drugs, SCr: 1.3 gr/dl, spot urine protein/Cr ratio: 298 mg/day.

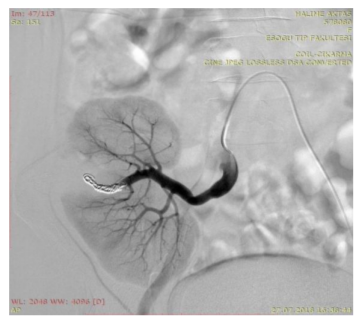

Figure 1    Figure 2

3. Discussion

---

AVF and pseudoaneurisms are iatrogenic damages which are related to biopsy in renal allografts and native kidneys. In our patient, because of having history of allograft biopsy and presence of intraparenchymal aneurism, aneurism is thought to be secondary to biopsy. In symptomatic patients; stent, coil and endovascular treatment via embolisation are used successfully in the treatment of these complications[8].

AVFs are attributed to simultaneous destruction of adjacent arterial and venous vessel walls and subsequent repair procedures. AVF frequency in allograft after renal biopsy is between %0.5 and %16 (9). %70 of AVF’s are asymptomatic and resolve spontaneously throughout weeks or months[10,11]. Pseudoaneurisms are caused by the bleeding that is triggered by destruction of arterial wall with biopsy. Then, during the repair processes of perivascular tissues, they liquefy and dissolve leaving a continuous sac[9]. Biopsy triggered AVF and pseudoaneurisms can be detected by Color Duplex Doppler ultrasonography which is able to detect intrarenal blood flow changes, their localization and dimension are defined with selective angiography[10,12]. Some writers suggest conservative therapy for biopsy related allograft damages[13,14]. Interventional radiology is supposed to be necessary when AVF and pseudoaneurisms cause severe clinical findings (like hematuria, high flow shunt, deterioration of renal functions), in case of high risk of rupture, severe hypertension, progressive volum increase of pseudoaneurism and diameter of more than 2.5 cm.10 Large pseudoanerisms have rupture risk without any intervention and in case of severe hypertension related to aneurism there is intervention indication[15]. When pseudoaneurisms enlarge over time, it can cause intrarenal blood flow restriction by pressure, therefore renal ischemia can lead to increase of blood pressure and deterioration of renal function as seen in our patient[15]. Finally, in our case aneurism was large and it could cause this type of pressure and regulation of blood pressure without any drug after intervention suggests the relation of high blood pressure with aneurism. Pseudoaneurism and AVF can be symptomatic by enlarging over time while they are small and asymptomatic at the beginning[16]. Nakatani et al. reported that they did a successful endovascular intervention to pseudoaneurism and AVF, diagnosed 5 years later from allograft biopsy .16 In the previous reports, the time between biopsy and intervention was mentioned between 2,9 days and 5 years[16,17]. Our case is different from other cases because of diagnosis of graft dysfunction, hypertension and vascular complication 7 years later from biopsy.

In conclusion, in renal transplant patients there is risk of iatrogenic pseudoaneurism and AVF despite the importance of percutaneous needle biopsy. Renal pseudoaneurisms can be detected after years and their aneurismal pressure effect can lead to allograft dysfunction and hypertension. It is precaution to evaluate allograft periodically with Color Duplex Doppler ultrasonography.
