1.Introduction

---

Heart transplant (HTX) patients have an high risk for many heart complications due to chronic immunosuppressive therapy, rejection and allograft vasculopathy [1-2]. For this reason an accurate evaluation of cardiac function is needed and echocardiography represents a key tool in the management of heart transplant recipients. However, although standard 2-dimensional and Doppler echocardiography show some limitations, such as subjective visual assessment of heart function and measurement of thickening only on the radial plane missing the other myocardial deformations properties, new echocardiographic techniques could overcome them [3].Particularly, two-dimensional Speckle Tracking Echocardiography (STE) allows us to evaluate longitudinal, circumferential and radial myocardial deformation as well as rotation, twist and untwist properties in different settings, it is able to unmask changes in left ventricular (LV) function at an earlier sub-clinical stage [4-9] and has an important prognostic role in detecting subgroups at risk of major events [10].

Despite recent publications revealed that STE-derived strain analysis is feasible and practical in HTX subjects [11-15], an integrated assessment of myocardial properties is lacking. Thus, our aim was to perform, by STE, an integrated study of ventricular mechanics in ―healthy‖ HTX recipients, in order to acquire new pathophysiological insights on the mechanisms underlying myocardial dysfunction in these particular setting of patients.

2. Materials and Methods

Patients Selection

Between January 2011 and October 2012, 154 consecutive pts with heart transplantation were assessed at our ―Cardiomyopathies and Heart Failure Unit‖. Inclusion criteria to the study were: a) preserved ejection fraction (EF > 50%); b) good clinical conditions (NYHA class I); c) heart transplantation performed at least 1 year before; d) normal myocardial perfusion assessed by scintigraphy in the last twelve months.

Exclusion criteria to the study were: a) inadequate echocardiographic resolution; b) patients with implantable cardioverter-defibrillators; c) history of histologic evidence of severe allograft rejection (Grade 2R or higher) based on the 2004 revised grading system of the International Society for Heart and Lung Transplantation (ISHLT) [16]; d) comorbilities such as diabetes mellitus, arterial hypertension refractory to medical therapy, coronary artery disease, atrial fibrillation during the study evaluation, significant valvular disease.

Among all the patients, 104 were excluded from the study (81 owing to the presence of exclusion criteria and 23 to inadequate echocardiographic images). The remaining 50 were enrolled for the study (HTX Group). In addition we studied 35 age-, sex- and BSA- matched normal subjects (CTRL Group). None of the control subjects had cardiovascular structural or functional abnormalities or received any medication.

Standard Echo-Doppler Study

Standard echo-Doppler was performed using a Vivid 7 ultrasound system (GE Vingmed Ultrasound AS, Horten, Norway). Cine-loops were recorded on DVDs for offline analysis (EchoPAC PC 6.0.0, GE Medical Systems). All the measurements were analyzed by two experienced readers, taking the average of 3 cardiac cycles.

LV diameter and wall thickness were measured according to the criteria of the American Society of Echocardiography [17]. Left atrium (LA) volume was determined by the biplane-area-length method [18]. In addition, LV EF was calculated by Simpson biplane method [19].

As measures of global LV diastolic function mitral peak velocities at the early (peak E) and late (peak A) diastole, their ratio, deceleration time of the E wave and isovolumic relaxation time (IVRT) were assessed by pulsed-Doppler with the sample volume placed at the mitral valve leaflet tips and at the aortic outflow [20].

By pulsed-wave tissue Doppler, peak early diastolic velocity of the mitral annulus was measured (E') and E/E' ratio was calculated [21].

Finally, right ventricular (RV) systolic function was assessed in the apical four-chamber view by measuring lateral tricuspid annular excursion (TAPSE), a previously validated parameter for assessment of ventricular function [22] and by the systolic peak velocity of the pulsed-wave tissue Doppler recordings from the basal segment of the RV free wall, adjacent to the tricuspid annulus (S') [23].

Speckle Tracking Echocardiography Study

For the STE study the second-harmonic B-mode images of apical (4-chamber, 2-chamber. 3-chamber) and short axis (at the mitral valve, mid LV and apical level) views were obtained. The frame rate was 79 ± 14 frame/s. The endocardial border was manually traced at the end-systolic frame and a speckle tracking region of interest was automatically selected. The width of the region of interest was adjusted as necessary to accommodate the total thickness of the ventricular wall. The computer automatically tracked stable objects in each frame using the sum of absolute differences algorithm. After these steps, the workstation computed and generated strain curves.

In order to assess LV strain and strain rate (SR) we utilized apical views (4-, 2- and 3- chambers) for the longitudinal and parasternal short axis views (basal, mid and apical level) for the circumferential and radial myocardial deformations as well as LV rotation functions (rotation, rotation rate, twist and twist rate)

The average between all regional values (18 segments) for each myocardial deformation were considered to assess global longitudinal, circumferential and radial strain and SR. On the other hand for RV longitudinal strain and strain rate (SR) apical 4-chamber view comprehensive of 6 segments (septum and lateral wall) was considered. Longitudinal and circumferential strain and SR peak values were defined as the maximum negative values of the curves from the apical and short axis views, respectively. Radial strain and SR peak values were defined as the maximum positive values of the curves from the short axis views.

The peak values of basal rotation (basal rotation and rotation rate) were defined as the maximum negative values of the curves from the short axis view at the mitral valve level.

The peak values of apical rotation (apical rotation and rotation rate) were defined as the maximum positive values of the curves from the short axis view at the apical level. Every view considered was divided in 6 segments which gave 6 different values : the mean value of them was considered.

LV twist was defined as the difference between the mean values of the peak rotation at the apical and at the mitral valve level (twist = mean peak apical rotation - mean peak basal rotation).

Similarly LV twist rate was defined as the difference between the mean values of the peak rotation rate at the apical and at the mitral valve level (twist rate = mean peak apical rotation rate - mean peak basal rotation rate). The untwisting onset was expressed as a percentage of systolic duration (the ratio between the time to peak twist, i.e onset of untwisting, and the duration of systole until the aortic valve closure) by the use of cardiac cycles with matched RR intervals (time to peak twist/systolic time). This normalization for systolic duration was made to overcome the heart rate dependence, as previously described [24]. The studies were analyzed off-line by a second blinded observer for 20 patients, corresponding to 840 segments.

Intraobserver variability was calculated by the average difference between the 42 measurements reanalyzed. Interobserver variability was calculated as the absolute difference divided by the average of the two observations for all parameters.

Ethics

The study was approved by the local research ethics committee and informed written consent was obtained from all participants.

Statistical Analysis

Data are expressed as mean ± standard deviation (SD). Clinical and demographic characteristics were compared using the Mann-Whitney U test for continuous variables and the χ2 test for categorical variables.

The correlation structure set of metric parameters was inspected using Pearson's product-moment correlation coefficient. A P value < 0.05 was considered statistically significant. StatView (SAS Institute Inc, Cary, NC) was used for all analyses.

3. Results and Discussion

Characteristics Of The Study Population The general characteristics of the studied groups are shown in Table 1. The mean time post-heart transplant was 7.6 ± 5.3 years. Compared to CTRL Group, HTX Group was comparable for age, sex, BSA and blood pressure, with a significant higher heart rate (HTX 87±7.3 bpm vs CTRL Group 75.3±9.4 bpm; p value <0.0001), due to heart denervation. At the time of the study thirty-four out of fifty HTX patients were under cardiac medical therapy (only on ace-inhibitors). Patients did not withdraw therapy before the echocardiographic evaluation, according to the rules of our institutions' research ethical committees.

Table1

Standard Echo-Doppler analysis

All standard echocardiographic data are shown in Table 2.
Compared to CTRL, HTX showed left atrial enlargement (LAVI 37.9 ± 5.1 ml/m2 vs 26.4 ± 4.1 ml/m2, p <0.01) and a decreased longitudinal excursion of the right ventricle free wall (TAPSE 14.42 ± 4.54 vs 19.5 ± 2.1 mm; p <0.0001) as well as systolic velocity peak of the pulsed-wave tissue Doppler (RV free wall S' 9.52±2.2 cm/s vs 13.5±1.9 cm/s; p<0.0001). In addition, HTX patients showed an increased IVRT (81.52±9.19 msec vs 71.8±5.4 msec; p<0.0001), suggestive of an early impairment of diastolic function.

Table2

Legend:Dec Time=deceleration time; EF = ejection fraction; IVRT = isovolumic relaxation time;IVSed = end-diastolic interventricular septum; LAVI =left atrium volume indexed; LVEDed = end-diastolic left ventriculardiameter; PWed = end-diastolic posterior wall; RV = right ventricular;

TAPSE = tricuspid annular plane systolic excursion. For HTX see table 1.

Speckle Tracking Echocardiography Study

All STI analysis data are shown in Table 3, Table 4 and Table 5. Compared to CTRL, HTX patients showed significantly lower values of LV global longitudinal, circumferential and radial, and RV longitudinal myocardial deformation (Strain and SR).

Table3    Table4    Table5

Legend: Ap = apical; Bas = basal; Long = longitudinal; SR = Strain Rate.For HTX and RV see table 1 and 3.

Of interest, when considering LV segmental values, in contrast to widespread reduction in the remaining segments, at the apex HTX pts showed a lesser but still significant reduction of Strain values (p < 0.05) and normal longitudinal, circumferential and radial Strain Rate values.

In addition, compared to CTRL, HTX pts had a lower basal rotation with a normal amplitude of apical rotation and then twist (HTX Group = Basal Rotation -5.09° ± 2.15°, Apical Rotation 7.61° ± 3.4° Global Twist 12.64° ± 3.9°; CTRL Group = Basal Rotation -7.26° ± 1.45°, Apical Rotation 7.13° ± 2.31° Global Twist 13.91° ± 2.8°; p values < 0.0001, p NS, p NS, respectively) (Figure 1,2).

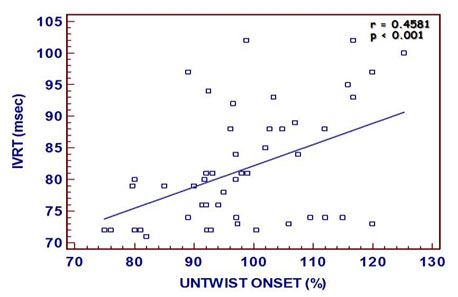

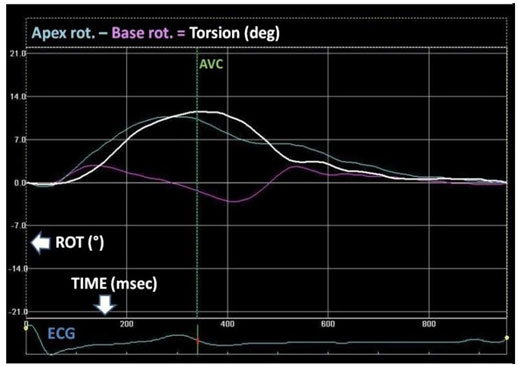

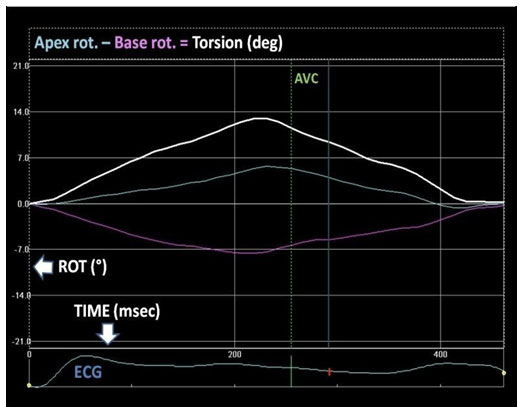

Figure1    Figure2    Figure3

Significantly, although RV longitudinal strain and SR were impaired compared to controls, no significant correlations were found between RV and LV myocardial deformations ( all p NS).

In conclusion we divided HTX patients into two groups according to the median time after transplantation, that was 7 years, obtaining subgroups HTX1 (heart transplantation more than 7 years before) and HTX2 (heart transplantation less than 7 years before), and we did not observe any significant difference between them in all parameters considered (all p NS).

Intra- and interobserver variability were 3.2% and 4.8% for STE longitudinal, circumferential and radial values, 3.9% and 5.6% for LV twist, and 2.0% and 3.6% for untwisting onset.

Main Findings

To our knowledge this is the first study in which an integrated ventricular mechanics (longitudinal, circumferential and radial deformation, rotation, twist and untwist onset) in ―healthy‖ heart transplant patients is performed.

The main finding of our study is that ―healthy‖ (EF > 50%, NYHA class I) HTX patients show impaired global biventricular myocardial deformation with a lesser degree of alteration or preservation of LV apical segments. In addition, the higher apical rotation may explain the maintenance of a normal amplitude of LV twist and thus ejection fraction. Finally, the mildly prolonged twist with consequent untwisting delay could play a major role in the onset of the early diastolic dysfunction

Conventional Assessment of Allograft Function

We considered patients at least one year after heart transplantation to overcome the temporary allograft dysfunction that is a common finding early after the surgical intervention [25]. Indeed, Lunze et al [25] studied 44 young rejection-free HTX recipients during the first year after heart transplant

and found a biventricular dysfunction (systolic and diastolic) in the early phases with a normalization of LV function after the first year post-transplant. On the other hand they found that RV systolic function remains abnormal 1 year-post-transplant. Accordingly our "healthy" HTX patients showed a normal LVEF. However, a subtle diastolic alteration, revealed by a prolongation of IVRT, was also detectable; in addition, although its accuracy is still controversial, a normal E/E' ratio, suggestive of normal mitral filling pressures was shown. Likewise, also our study group showed right ventricular dysfunction, as confirmed by the reduction of TAPSE and systolic peak velocity of the PW tissue Doppler (S') as well.

In HTX patients RV impairment is a common finding but its frequency, causes, and naturalhistory are still undefined. Indeed, owing to lack of standardized objective criteria, the reported prevalence of RV dysfunction in HTX patients is highly variable: Klima et al reported 5.9% of severe RV dysfunction using very restrictive criteria [26] and Campana et al observed 11.7% of increased right atrial pressure [27]; on the other hand Mastouri et al [28] demonstrated that 100% of his HTX study group had RV impairment defined as TAPSE > 2 SD below normal values.

Integrated Ventricular Mechanics

Our HTX patients, although clinically ―healthy‖, were characterized by a diffused reduction in LV systolic longitudinal, circumferential and radial, and RV systolic deformations (strain and strain rate).

Accordingly recent studies demonstrated a significant reduction in LV longitudinal deformations [13 15]. Particularly, Pichler et al [15] observed that the reduction in longitudinal strain in ―healthy‖ HTX patients does not deteriorate 3 years after the initial assessment and remains stable over the years as long as the LVEF is preserved; additionally our HTX patients did not show any difference in terms of STE data when comparing patients more or less than 7 years from heart transplantation. Unlikely Saleh et al [13] found normal values of circumferential strain in HTX patients 1 year after transplantation, but he did not perform an integrated assessment of myocardial deformations limiting his analysis to longitudinal and circumferential deformation.

Of interest, in our patients we found different LV myocardial deformation values between LV apical and basal level. Indeed, the basal segments showed a homogeneous reduction of strain and SR indexes while at the apical level we found a lesser lowering of strain with preserved SR values. The different

behavior of apical Strain and SR could reflect the relatively load independence of SR, which is more comparable to intrinsic contractility. [29]

This LV base-apex gradient was also confirmed by rotation data: compared to control group HTX patients showed a significantly lowered basal rotation with preserved apical rotation. As a consequence LV twist amplitude, which is the net difference in clockwise and counterclockwise rotation of the LV apex and base, was normal.

LV twist plays a major role in LV mechanics and ejection fraction maintenance and a significant correlation between LV torsion and EF has been shown [30]. Accordingly, our finding could explain the preservation of EF in healthy HTX patients, despite the reduction of longitudinal, circumferential and radial deformation.

Impairment of LV filling is also supported by our STE data, showing a mildly delayed untwisting. Indeed, as subsequent recoil of twist deformation ("untwist") contributes to LV diastolic relaxation and early diastolic filling, a delay of this recoil mechanism induces impairment of LV relaxation [30 33].

Indeed Burns et al [34] showed that the untwisting delay significantly correlated to the invasive indexes of LV relaxation (prolonged τ) but not to LV stiffness. Accordingly, we found a significant correlation between untwisting delay and IVRT, as shown in our previous study on cardiomyopathies, too [35].

New Pathophysiological Insights

Our "healthy" HTX pts showed, even in presence of a normal peak LV twist, a decreased LV twist rate (i.e. an increased duration of systolic twist) associated to concomitant LV and RV alterations of the regional myocardial deformation (decreased LV longitudinal, radial, circumferential strain and SR, basal rotation, and RV longitudinal strain and SR).

Potentially, several factors, could be taken into account to explain the subclinical impairment of both LV and RV: pretransplantation ischemia, brain death in the organ donor (myocardial injury determined by catecholamine surge after the sudden increase in intracranial pressure as a consequence of an intracranial hemorrhage or head trauma) [36], aftereffects of any open heart surgery [37], heart denervation.

On the other hand other causes may have a deeper impact on RV mechanics than LV: altered atrial architecture following heart transplantation, expecially after biatrial surgical technique, and elevated precapillary pulmonary resistance in the recipient's circulation.

Although ventricular functional interdependence was previously well defined [38, 39], the lack of correlation between LV and RV myocardial deformation properties in HTX patients probably reflects these different pathophysiological substrates.

Of interest a clear LV base-apex gradient is detectable and this apical compensatory mechanism is a mainstay to preserve the degree of LV systolic rotation and thus ensure a normal EF.

In presence of the above-mentioned pathophysiological substrates we speculated that regional alterations in LV mechanics following heart transplantation may reflect differences in terms of systolic wall stress. Indeed, according to the Laplace law, wall stress (afterload), owing to a smaller cavity diameter, is lower at the apex than at the base. These regional loading conditions may explain the preservation of apical myocardial function as a compensatory mechanism to the basal alterations.

Study Limitations

Although 70% of them was in ace-inhibitor therapy due to corticosteroids-related hypertension, our study population, according to inclusion criteria, had normal blood pressure values.

LV strain and SR indexes might be influenced by several factor, such as blood pressure, LV geometry and filling pressures; however, in our HTX study these parameters were comparable to the control group making the impact of such factors not relevant.

On the other hand the higher heart rate in our HTX group due to cardiac denervation could affect some functional data. Nevertheless, the untwist onset was corrected for heart rate by converting systolic interval to 100% as previously described [35,40]. Furthermore, the deformation parameters (longitudinal, radial and circumferential strain, twist) are relatively heart rate independent [41-42].

4.Conclusions

"Healthy" HTX patients, even in presence of impairment of global (longitudinal, circumferential, radial) myocardial deformation, show normal values of LV apical SR and rotation, which account for normal amplitude of LV twist and in turn global ejection fraction.

In addition, probably due to regional differences in wall stress, a base-apex gradient of these subclinical systolic dysfunction is detectable. Finally a delayed untwisting due to prolonged twist could be responsible of an early impaired LV diastolic filling.

Further studies are needed to assess the potential impact of these new pathophysiological insights on the management of the "healthy" heart transplant patients.
